Optimizing Liquid Cooling in Data Centers
A Coolant Distribution Unit (CDU) distributes, monitors, and controls coolant between facility cooling infrastructure and server racks. Gems Sensors helps optimize CDU performance with level, pressure, and flow sensing plus solenoid valve control, supporting liquid cooling for high-density HPC, AI, and ML workloads where air cooling alone cannot keep up.
Overview of Liquid Cooling in Data Centers
Liquid cooling (including direct-to-chip) transfers heat more efficiently than air, enabling higher rack densities and supporting sustainability goals. CDUs sit at the center of many deployments, providing centralized coolant management and thermal transfer so loops stay within design limits.

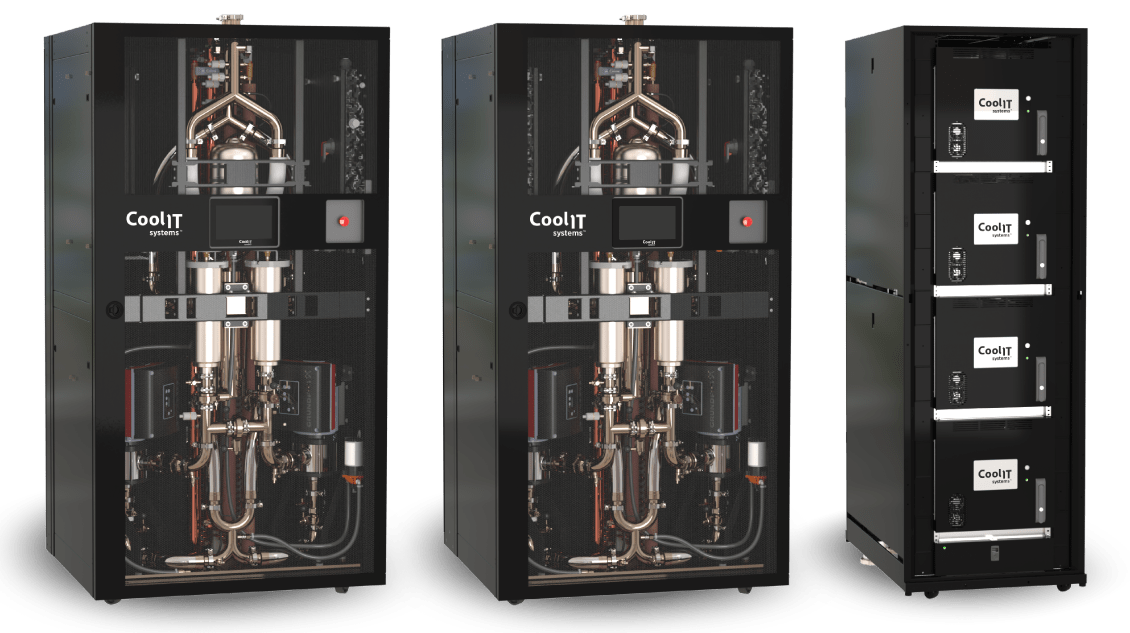

Coolant Distribution Units (CDUs)
A CDU is the specialized unit that distributes, monitors, and controls coolant flow between the cooling plant/infrastructure and IT racks. Key CDU functions include:
- Thermal Regulation: Keep coolant temperatures in range for heat transfer and hardware protection
- Flow Management: Circulate coolant through pipes, pumps, and heat exchangers
- Monitoring and Diagnostics: Measure level, pressure, flow rate, and temperature
- Leak Detection: Identify leaks before they cause damage or downtime
- Efficiency Optimization: Control pumps and flow rates from real-time data
Gems Sensors Solutions for CDUs

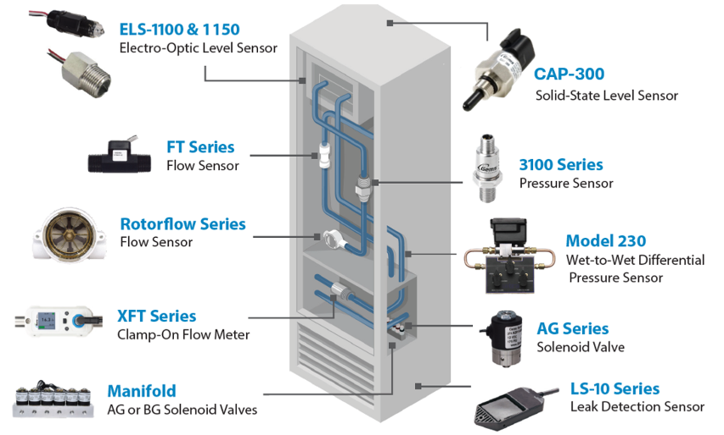

Level Sensors for Coolant Reservoirs and Manifolds
Proper coolant level is essential for uninterrupted CDU operation.
- CAP-300 capacitive level sensors for direct-contact monitoring in reservoirs and manifolds so servers continue to receive adequate cooling.
- UL-listed electro-optic sensors for compact high/low level detection in challenging environments.
Pressure Sensors for Blockages and Leaks
- 3100 Series pressure transducers, rugged system pressure measurement to flag abnormalities.
- Setra Model 230 wet-to-wet differential pressure transducers, precise monitoring of filters, heat exchangers, and flow performance
Flow Sensors for Coolant Circulation
- XFT non-contact ultrasonic flow meters, flow and pipe temperature without extra in-line leak points or pressure drops.
- RotorFlow® sensors, flow measurement with visual indication.
- FT-110 Series, high-accuracy flow measurement in liquid cooling loops.
Solenoid Valves for Coolant Distribution
AG and BG Series solenoid valves provide high flow and fast response for coolant distribution inside the CDU.
Key Takeaways
- CDUs centralize coolant distribution, monitoring, and control for liquid-cooled racks.
- CDU health depends on level, pressure, flow, temperature awareness, leak detection, and flow control.
- Gems covers CDU needs with CAP-300, electro-optic level, 3100/3500 pressure, XFT, RotorFlow, FT-110 flow, and AG/BG valves.
FAQ
What is a Coolant Distribution Unit (CDU) in a data center?
A CDU distributes, monitors, and controls coolant flow between cooling infrastructure and server racks. It supports thermal regulation, flow management, sensing/diagnostics, leak detection, and efficiency optimization.
Why do liquid-cooled data centers need CDUs?
CDUs provide centralized coolant management so direct-to-chip and other liquid loops can operate at higher densities with consistent heat transfer, something traditional air cooling struggles to match for HPC/AI loads.
What sensors go into a CDU?
Level sensors (CAP-300, UL-listed electro-optic), pressure transducers (3100 and Setra Model 230), flow sensors (XFT ultrasonic, RotorFlow®, FT-110), plus AG/BG solenoid valves for flow control.
What is an advantage of XFT ultrasonic flow meters in CDUs?
XFT non-contact ultrasonic meters measure flow and pipe temperature without introducing the leak points or pressure drops common with traditional in-line meters.
Which solenoid valves does Gems recommend for CDU coolant control?
AG and BG Series solenoid valves are cited for high flow rates and fast response to distribute coolant efficiently within the CDU.
